1. Application: It is suitable for water-based and solvent-based conductive coatings, wave absorbing invisible materials,
anti-static shielding materials, conductive ink, etcIt is used in the electronics industry instead of silver powder. Because
of its high conductivity, it can also replace some silver powder in the production of conductive silver paste to reduce the
cost of slurry.
2. Product features:
2.1 The product is irregular sheet shape and has a metallic luster appearance;
2.2 Diameter thickness ratio of about 10:1-30:1 range, thickness of about 1-5 microns (can be adjusted according to
requirements), sheet structure with multiple conductive contacts, good electrical conductivity;
2.3 High purity, nickel content guaranteed 99.8%, nickel properties have strong oxidation resistance and corrosion resistance,
stable electrical conductivity; 2.4 The powder has good hydrophilic and oil-philic properties, and the coating product is
smooth and metallic luster after drying on the surface of the substrate.

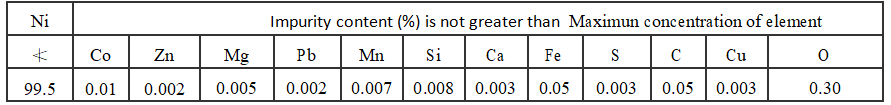

3. Chemical composition (see Table 1) : Table 1 Chemical composition of flake nickel powder

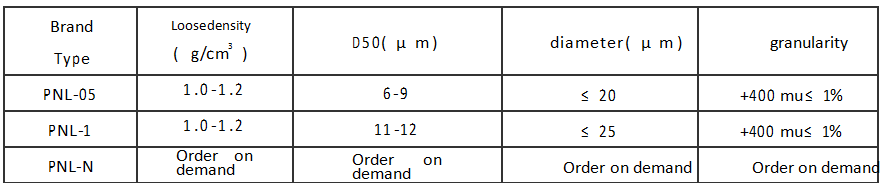

4. Product brand and particle size index:
Table 2 Particle size index of flake nickel powder
5.Electron microscope image
